One roof brace is cracked, and several others are built from lumber that's on the light side for the job

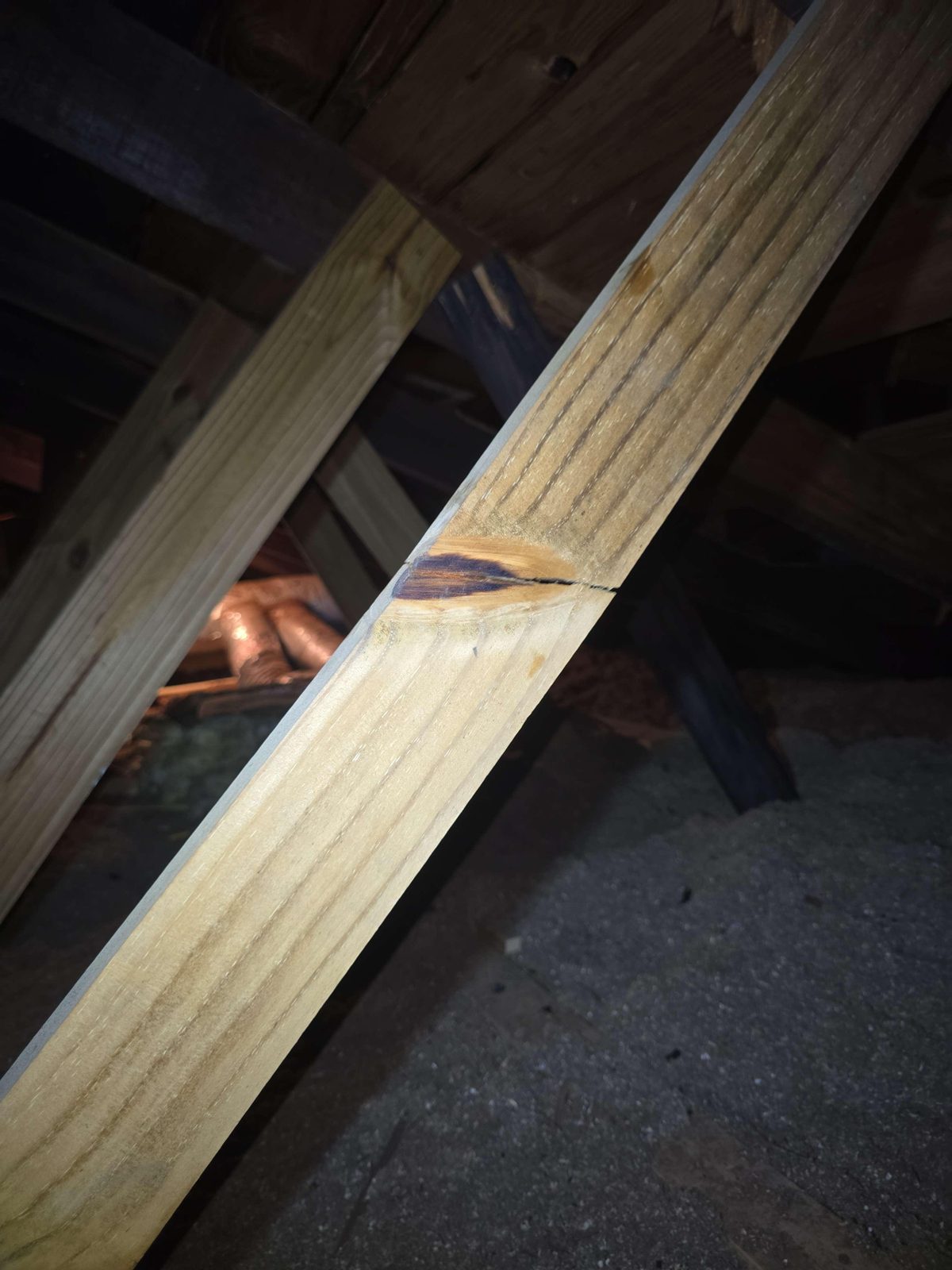

During the inspection, one diagonal brace—a board installed at an angle inside the roof structure to help it hold its shape—was observed to have a crack at its midpoint. Separately, several other diagonal braces throughout the roof framing were found to be built from 1x4 and 1x6 dimensional lumber, which is a relatively narrow board size for members that are asked to carry compressive load (the squeezing force that pushes along the length of the board).

Roof bracing is installed to resist the lateral forces (sideways push) and compressive forces that the roof structure experiences. Thinner lumber like 1x4 and 1x6 is commonly considered undersized when used in a compressive role, because slender boards are more susceptible to buckling—bowing sideways under load—than wider, thicker stock. A crack in a brace reduces whatever capacity that individual member had to begin with.

A cracked brace has reduced ability to do its job, and undersized lumber in a compressive role carries less margin than properly sized material. Together, these conditions represent a standard-level finding worth professional attention—not a cause for alarm, but a reason to get informed eyes on the framing before you proceed.

Have a qualified structural engineer or a licensed contractor with roof-framing experience evaluate the bracing system. They can assess whether repairs, replacements, or reinforcements are appropriate and tell you exactly what would bring the framing up to standard.

Older homes especially were sometimes framed with lighter lumber in brace positions, either because standards were different at the time or because materials on hand were used in place of purpose-sized stock. Cracks in individual framing members turn up with some regularity in inspections. Neither situation is unusual to encounter.
